J1772 to NACS AC Charging Adapter | Bridge Series

J1772 Charger → NACS Vehicle

Fits: NACS-equipped vehicles
Charging: Level 1 & Level 2 AC only
Not compatible with: DC fast charging

This Altreon Bridge Series Adapter allows Teslas and other NACS-equipped vehicles to charge seamlessly using standard J1772 AC charging equipment.

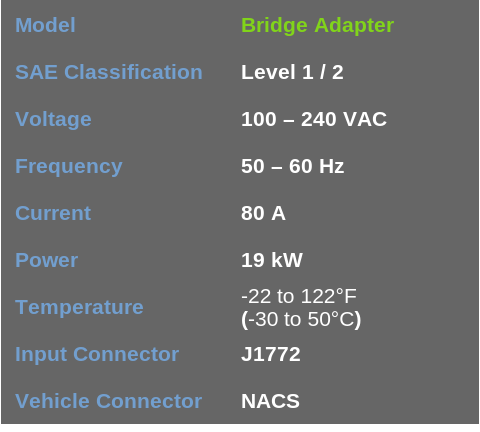

Technical Specifications

• Connection Types: J1772 (charger) → NACS (vehicle)
• SAE Classification: Levels 1 & 2
• Max Voltage: 240 VAC
• Max Current: 80 A
• Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• Weather Rating: IP55 (outdoor rated)
